Manual Gate Valve

For Manual Gate Valve, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our Hand gate valve has been well received by many customers and enjoyed a good reputation in many countries LYV® Hand gate valve have characteristic design & practical performance & competitive price, for more information on the Hand gate valve, please feel free to contact us. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Manual Gate Valve. We look forward to cooperating with you.

Send Inquiry

Product Description

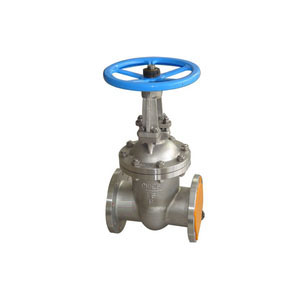

LYV® Hand gate valve Introduction

You can rest assured to buy customized Manual Gate Valve from LYV®. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! Manual gate valve is a control component that moves through the hand wheel drive gate along the channel axis in the vertical direction to cut off the medium flow in the pipeline system. In the process of use, the valve must be fully open or fully closed, and cannot be used to regulate the flow.

When the gate valve is closed, the sealing surface can only rely on the medium pressure to seal, that is, only rely on the medium pressure to press the sealing surface of the gate to the seat on the other side to seal the sealing surface, which is self-sealing. Most gate valves are forced to seal, that is, when the valve is closed, to rely on external force to force the gate to the seat, sealing surface tightness.

The Manual Gate Valve whose gate plate moves in a straight line with the stem is called lifting rod gate valve (also called open rod gate valve). Usually there is a ladder thread on the lifting rod, through the nut at the top of the valve and the guide groove on the valve body, the rotating motion into a straight motion, that is, the operating torque into the operating thrust. Some valves, the stem nut is located on the gate, the hand wheel rotates to drive the stem to rotate, and the gate is lifted. This kind of valve is called rotating rod gate valve or dark rod gate valve.

LYV® Hand gate valve Parameter (Specification)

Nominal diameter: DN15-DN1200

Nominal pressure: 1.6 MPA-6.4 Mpa

Applicable temperature: 120℃

Applicable medium: water, oil, steam

Body material: cast steel, carbon steel

Connection mode: flange connection

Design and manufacture: GB12234

Structure length: GB12221

Flange standard: GB9113; JB79

Inspection test: GB/T13927; HG/T9092

LYV® Manual Gate Valve Feature And Application

① Meet the requirements of the standard, reliable sealing, reliable performance, beautiful shape;

(2) The sealing pair is reasonable, the sealing surface of the gate and the seat is made of hard alloy surfacing with different hardness, which has reliable sealing, high hardness, wear resistance, high temperature resistance, corrosion resistance, good abrasion resistance and long life;

③ The valve stem has good corrosion resistance, abrasion resistance and wear resistance after conditioning and surface nitriding treatment;

(4) Wedge type elastic ram structure, large diameter thrust bearing, small friction, and equipped with impact hand wheel, easy to open and close;

(5) Can use a variety of pipe flange standards and flange sealing surface form, to meet various engineering needs and user requirements.

LYV® Hand gate valve Details
