API 600 Gate Valve

LYV API 600 gate valve Introduction

API600 on both sides of the seal and ram travel a certain number of degrees, so that the gate valve becomes wedge, and then the valve in the pipeline axis for action, used in the pipeline and container switch.

Wedge gate valves are widely used in petroleum industry, chemical plants, and some thermal power stations

LYV API 600 gate valve Parameter (Specification)

Design and manufacture valve standard: GB/T12234-89

Structure length standard: GB/T12221-89

Inspection and test standard: JB/T9092-99 GB/T13927-92

Connection flange standard: JB79-94,GB/T9113-2000

LYV API 600 gate valve Feature And Application

Design standard :API 600, GB/T 12234

Relatively small flow resistance design

The switch torque is low

There is no direction limit to the flow of the medium

Seal stable, can be used for a long time in a variety of conditions.

Valve has upper seal design

The stem is sealed with flexible graphite and graphite disc.

There is a pressure seal structure

Solid ram design

Dark stem valve stem design

And jacket insulation design

Product range

Body material: carbon steel, stainless steel, alloy steel, duplex stainless steel

Caliber :1/2"~60"(DN15~1500)

Pressure: Class150~2500(PN10~PN420)

Connection: RF, RTJ, BW

Operating temperature -110℃~+560℃

Operation mode: hand wheel, bevel gear, electric, pneumatic

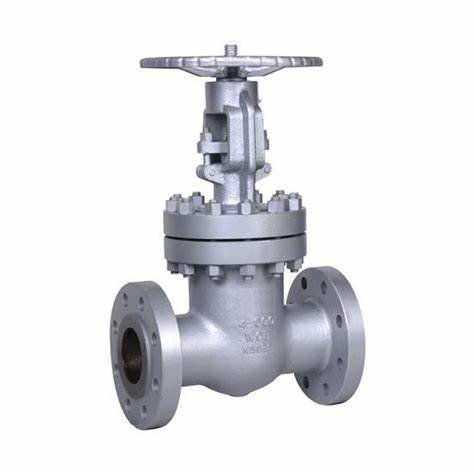

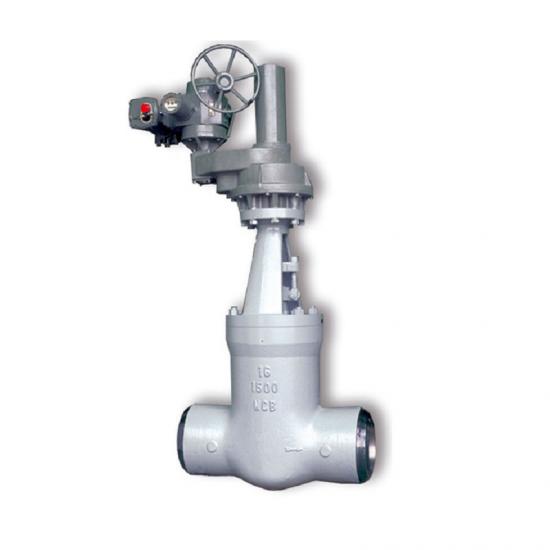

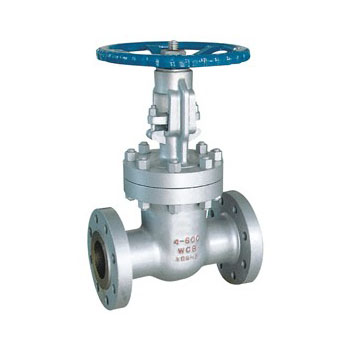

LYV API 600 gate valve Details
